Flat Ipod Shuffle Connector

I am using my Ipod Nano for years now and I have to say Apple did a good job with this little Mp3 player. There was only a little problem with the connector since it was very cumbersome and I wanted to take it with me in my laptop bag.

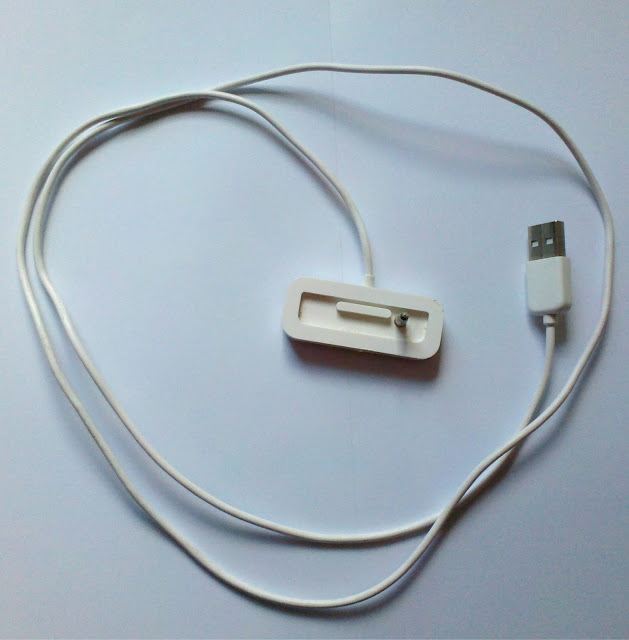

Thats why I disassembled the plug :

Read more for the whole mod!



If you want to open the Ipod connection base you have to do it from the bottom.




And there's the circuit board! Lets take a closer look at it:


I took a hot wire to cut through the plastic and remove the 3,5mm plug without damaging the connections:




I took a little white piece of plastic and glued the circuit board onto it:


At the end I added the original Apple logo to my new flat connector:







And thats how I transformed the bulky connector to a flat one!
